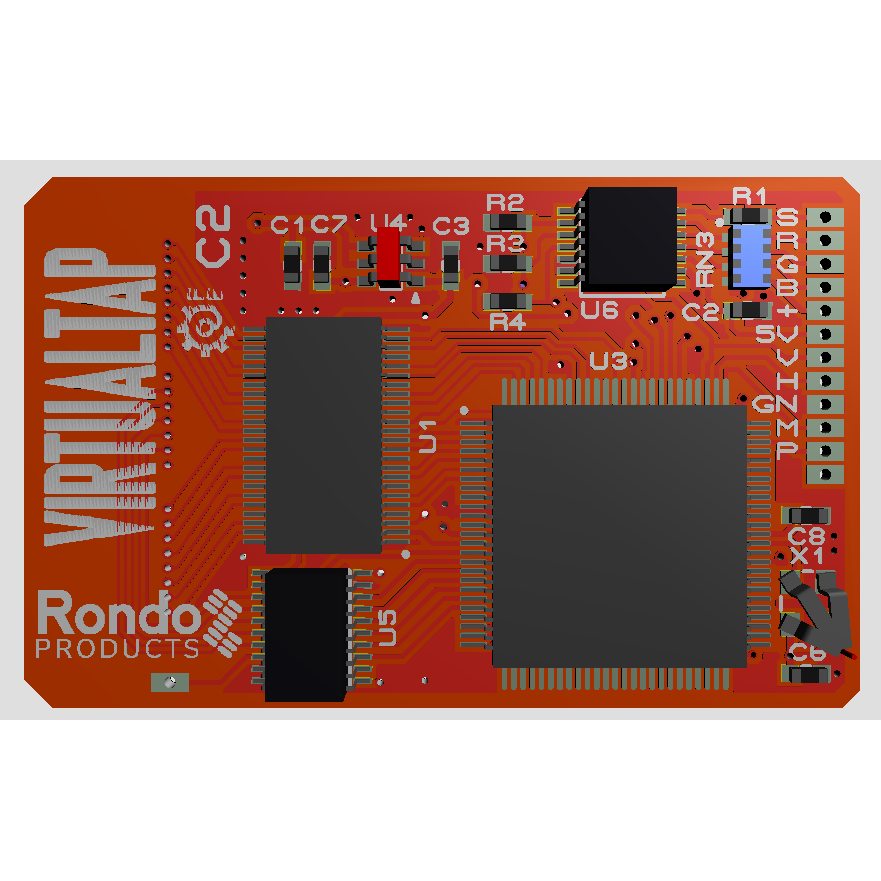

Virtual Tap - Embedded video-out mod board for the Nintendo VirtualBoy

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.
Choose Video Output Deisred (VGA, NTSC)

If you've ever wanted to be able to play the VirtualBoy without having a seizure, or in a different color than red, if you want to stream gameplay from real hardware, or if you've want to use a projector to show off your awesome sk1LLz at shows and expos, now you can!

Features:

  • Pixel-perfect scaling, crisp video output.
  • Select any of 8 palettes, red is default. Customization possible for a small fee.
  • Install on either left or right eye displays. Or both.
  • Choose yourself between low-lag or no-tearing options.
  • Can fit inside the VirtualBoy unit itself.
  • Simple install, minimal wiring.

Two Versions

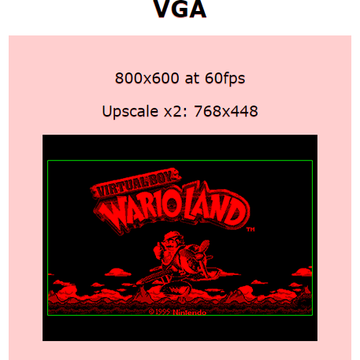

VGA 800x600 at 60fps; upscaled x2 768x448

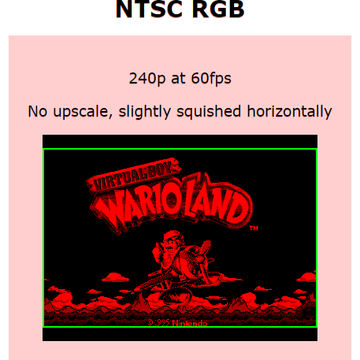

NTSC 240p at 60fps; No upscale, slightly squished horizontally

What you get:

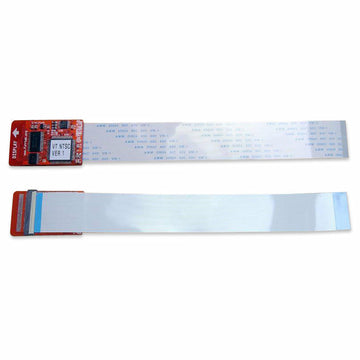

  • The programmed and tested board
  • A ribbon cable

What's required:

  • Reasonable quality soldering iron and solder (leaded preferred)
  • A long 4.5mm "Game bit" screwdriver
  • About 3 meters of ~22AWG flexible wire
  • Whatever socket you want: DE-15 (VGA), 7 or 8 pin DIN, Mini DIN, Nintendo AV...
  • A bit of patience and care
  • Obviously, a VirtualBoy unit

Virtual Tap is an Open Sourced Project:

https://github.com/furrtek/VirtualTap

No cut mod by Greg Collins of Laser Bear Industries here

Installation Instructions:

English version (V1)
Version Française (V1)

Recommended Installers can be found here.
